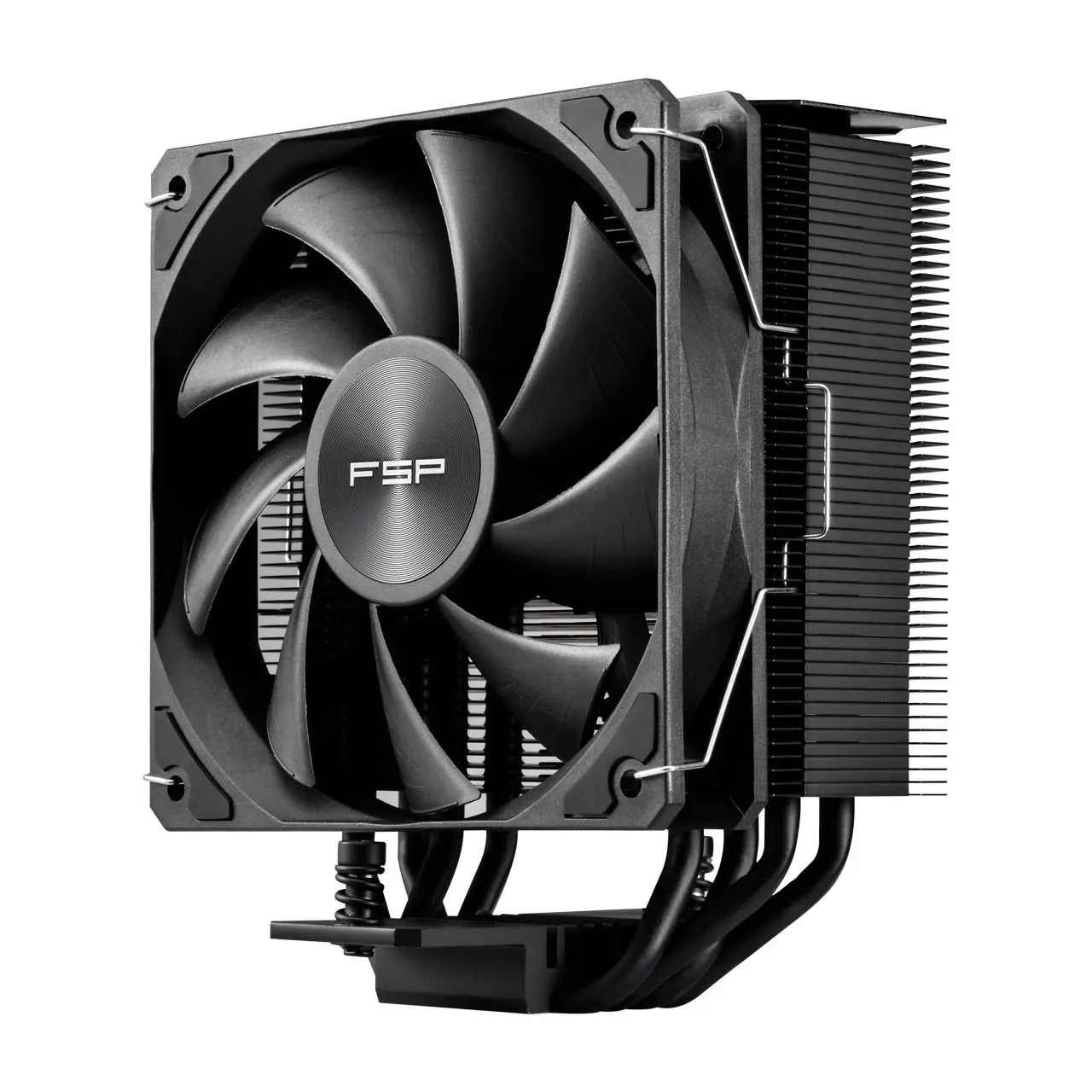

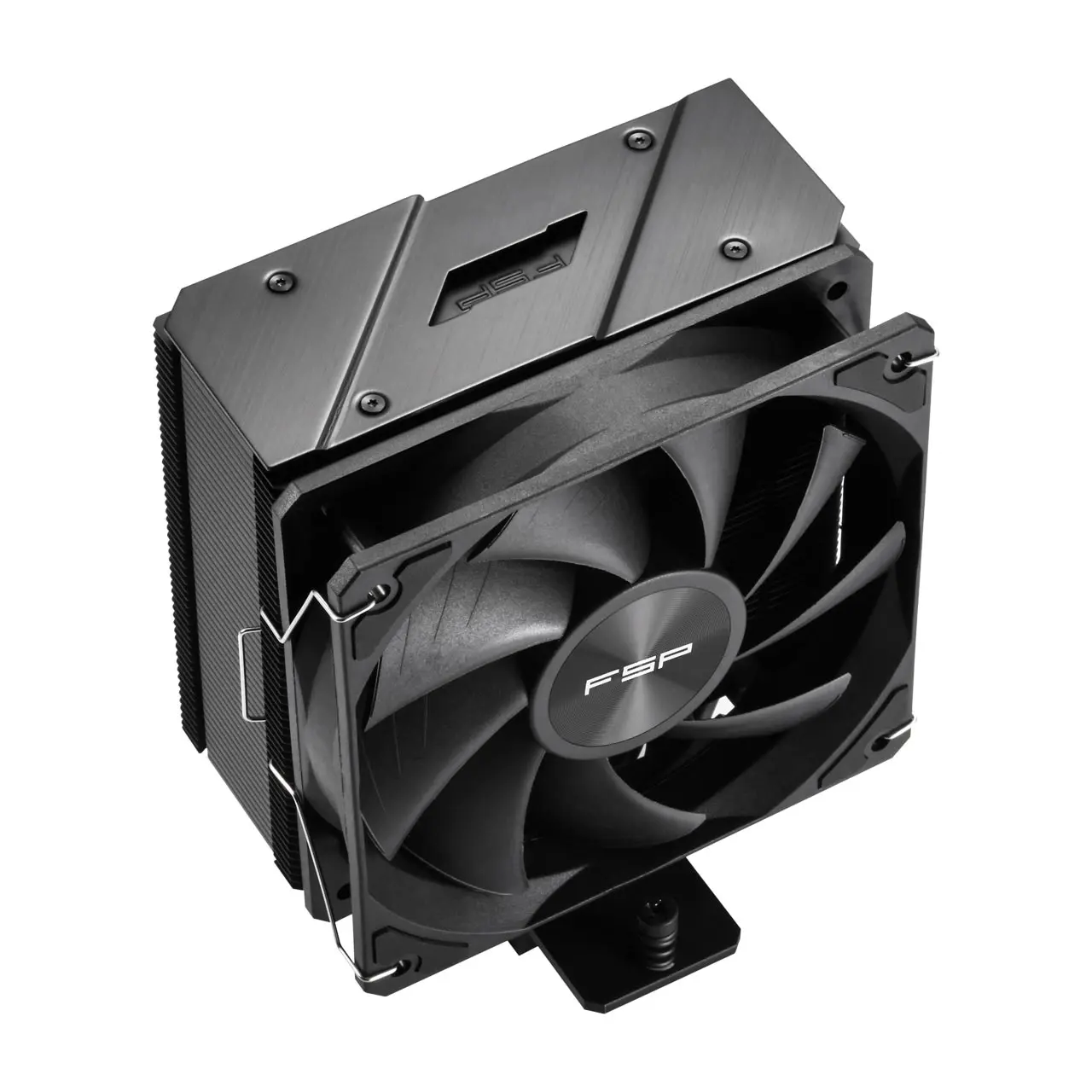

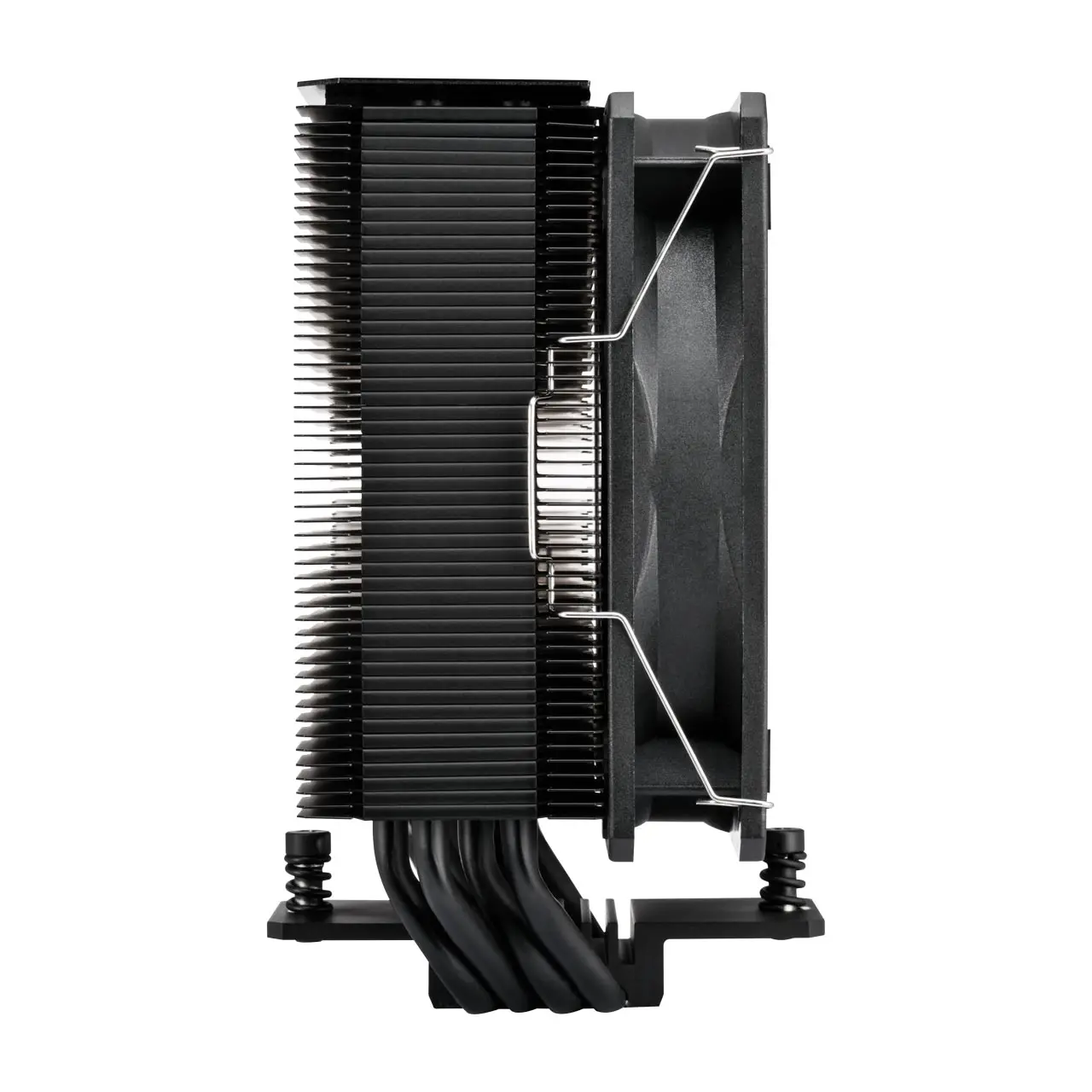

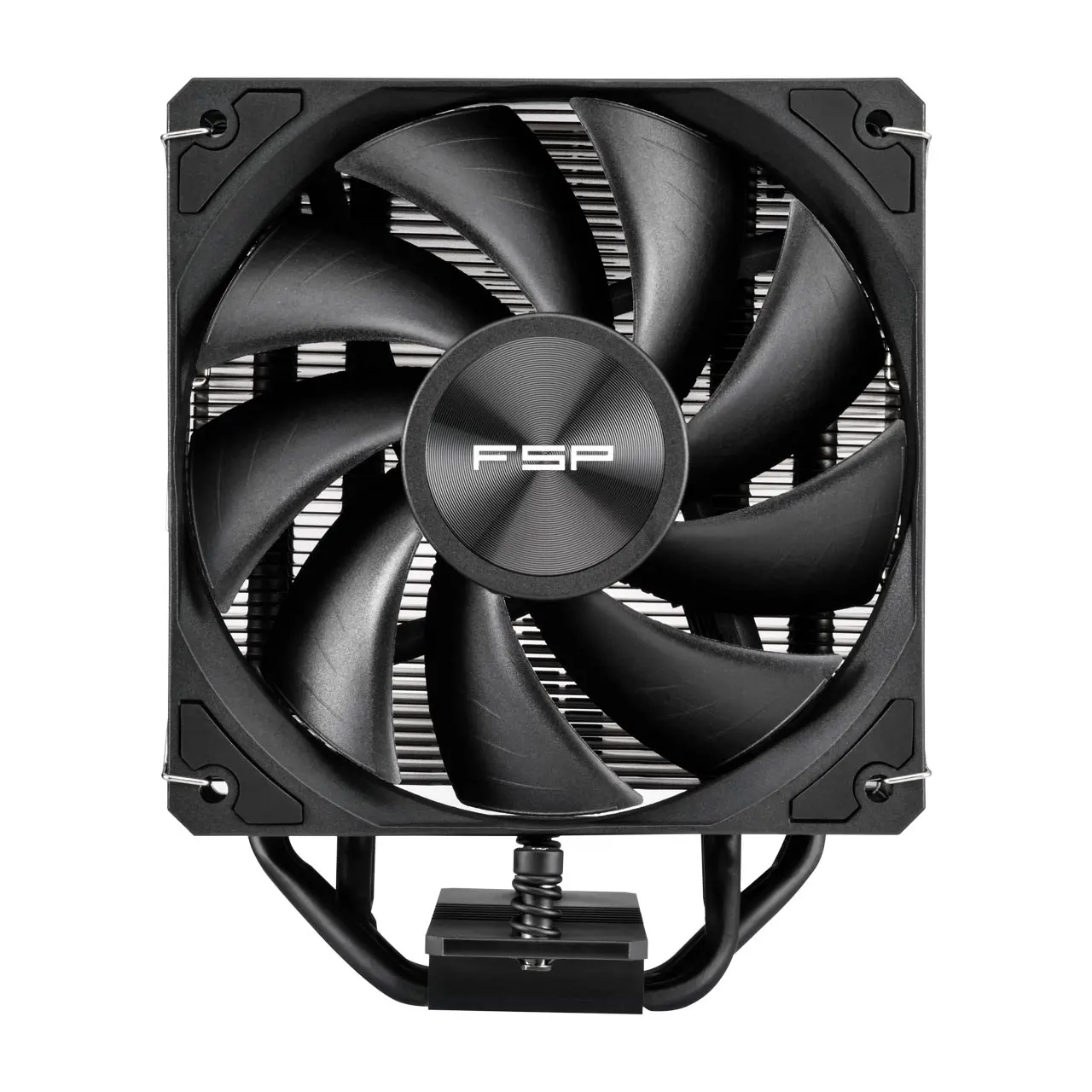

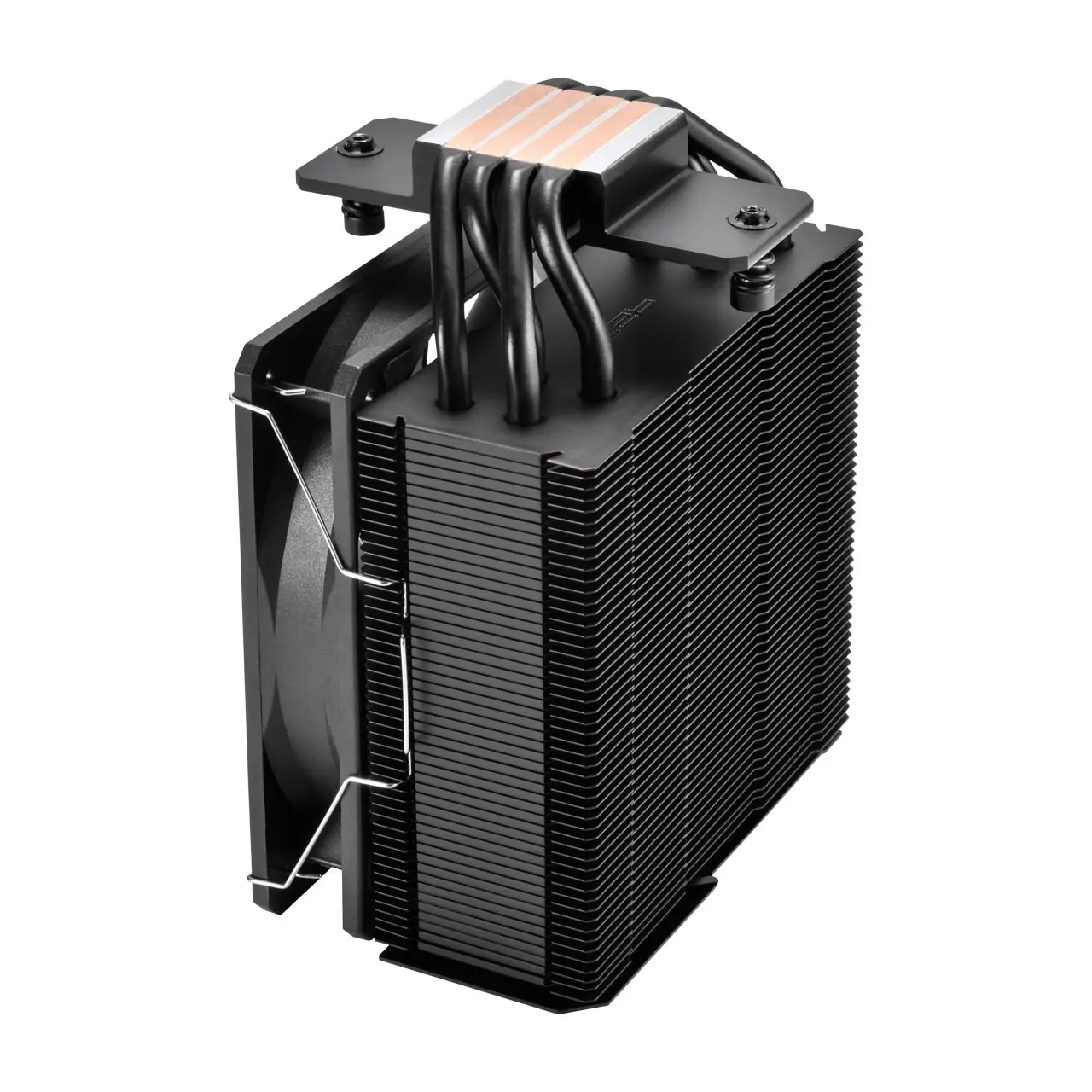

FSP NP5-B CPU Air Cooler 200W with 4 Heat Pipes

FEATURES 200W Thermal Wattage: Designed to provide efficient cooling for high-performance processors. 4 × 6mm Heat Pipes: Advanced anti-gravity heat-pipe design efficiently transfers heat away from the CPU. 120mm PWM Fan: Delivers effective cooling with automatic PWM-based fan speed control. 800–1600 RPM: Adjustable fan speed provides an ideal balance between cooling performance and noise. 62 CFM Airflow: Generates strong airflow through the heatsink for efficient heat dissipation. 1.8 mmH₂O Static Pressure: Provides strong air pressure to effectively move air through the heatsink. HDB Bearing: Hydraulic Dynamic Bearing ensures smooth, stable and reliable fan operation. Full RAM Clearance: Designed to minimize interference with RAM modules for flexible memory installation. Anti-Vibration Pads: Help absorb fan vibrations and reduce unwanted operating noise. Black Finish: Features a clean black design that complements modern gaming and workstation PC builds.

Model

NP5-B

Thermal Wattage

200W

Color

Black

CPU Supported Platforms

Intel LGA: 1954 / 1851 / 1700 / 1200 (The installation method for 1954 / 1851 is the same as for 1700), AMD: AM5 / AM4

Dimensions (LxWxH)

120 x 94 x 151 mm

HeatSink Dimensions (LxWxH)

120 x 48 x 151 mm

Fan Dimensions (L x W x H)

120 x 120 x 25 mm

Weight

590 g

Heatsink Material

Aluminum Alloy

Heat-pipe

6 mm x 4PCS

Fan Speed

800 - 1600 RPM (PWM) ± 10%

Bearing Type

HDB

Static Pressure

1.8 mm H2O ± 10%

Fan Air Flow

62 CFM ± 10%

Noise Level

28 dBA ± 10%

Rated Voltage

12 VDC

Rated Current

0.3 A

LED

N/A

Warranty

3 Years

EAN / UPC

EAN: 4711498480811 / UPC: 845685015419
