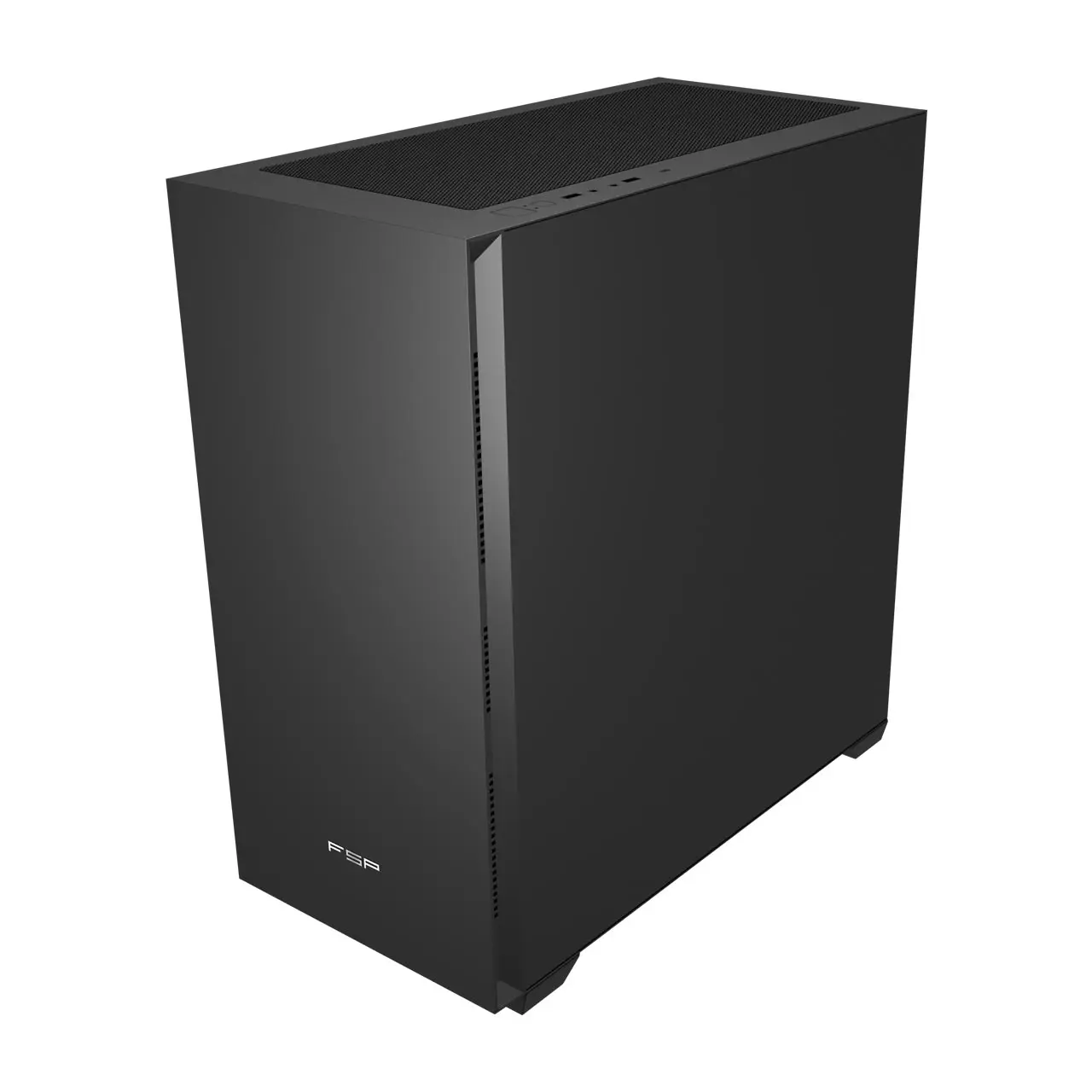

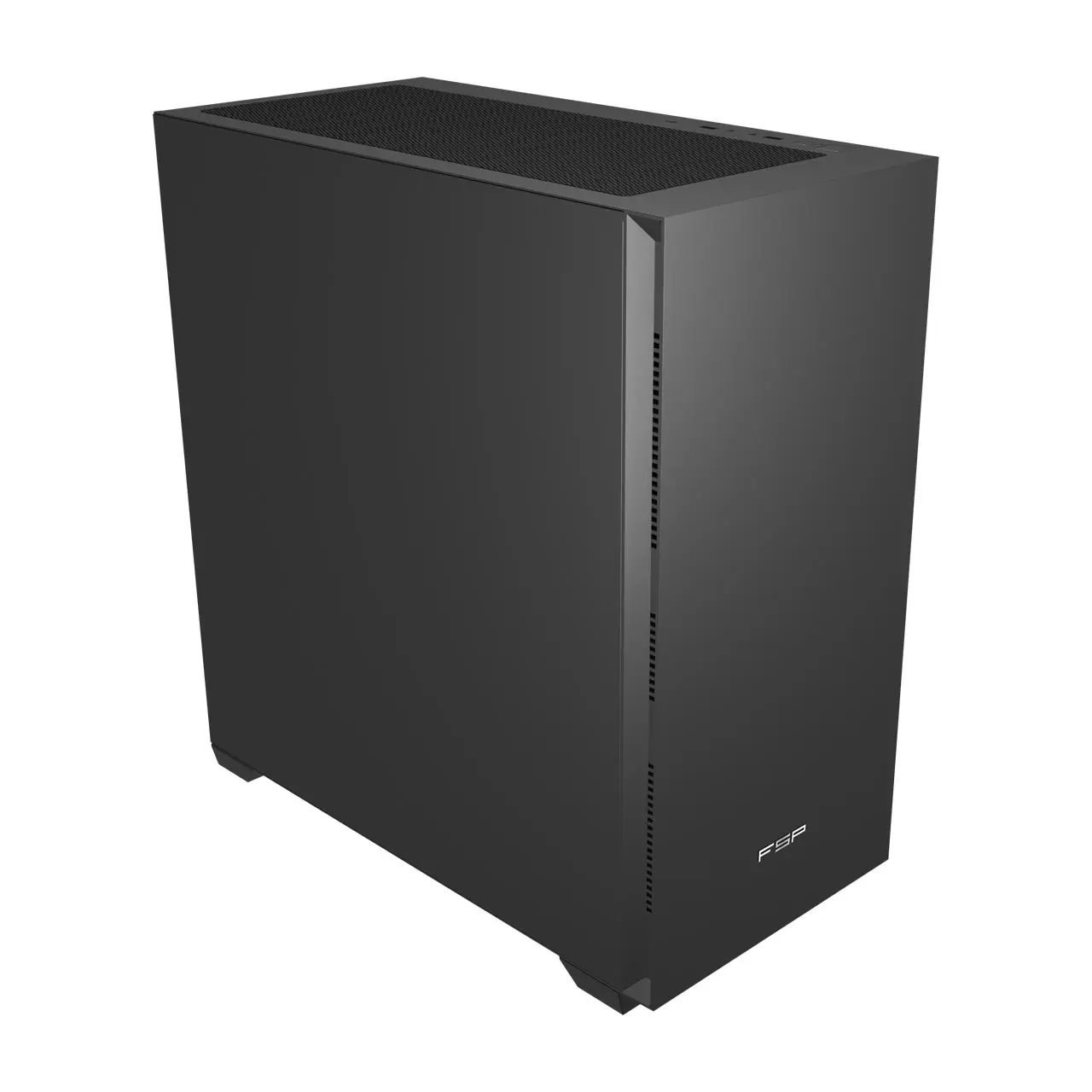

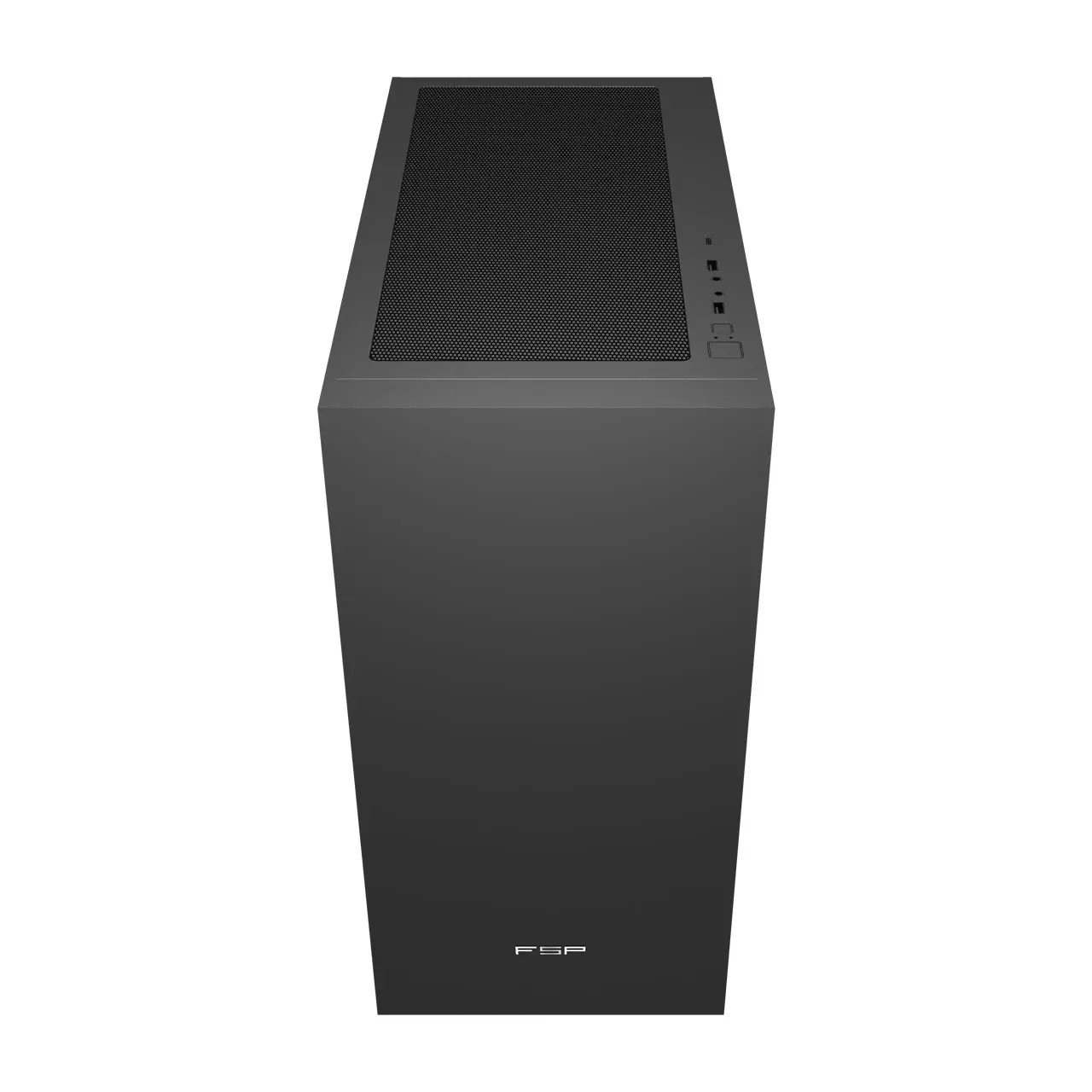

FSP U530-BS Silent E-ATX Ultra Tower Gaming PC Cabinet

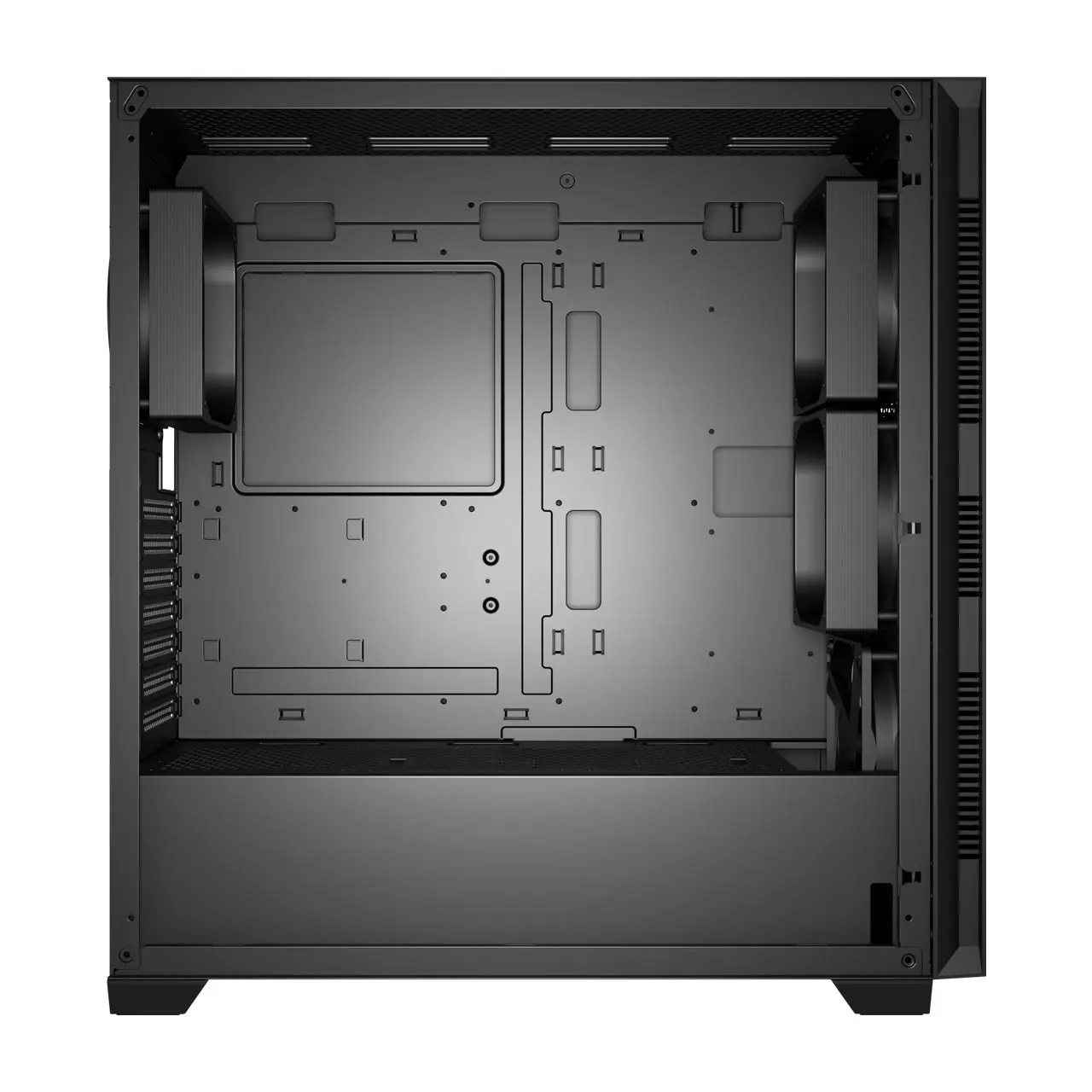

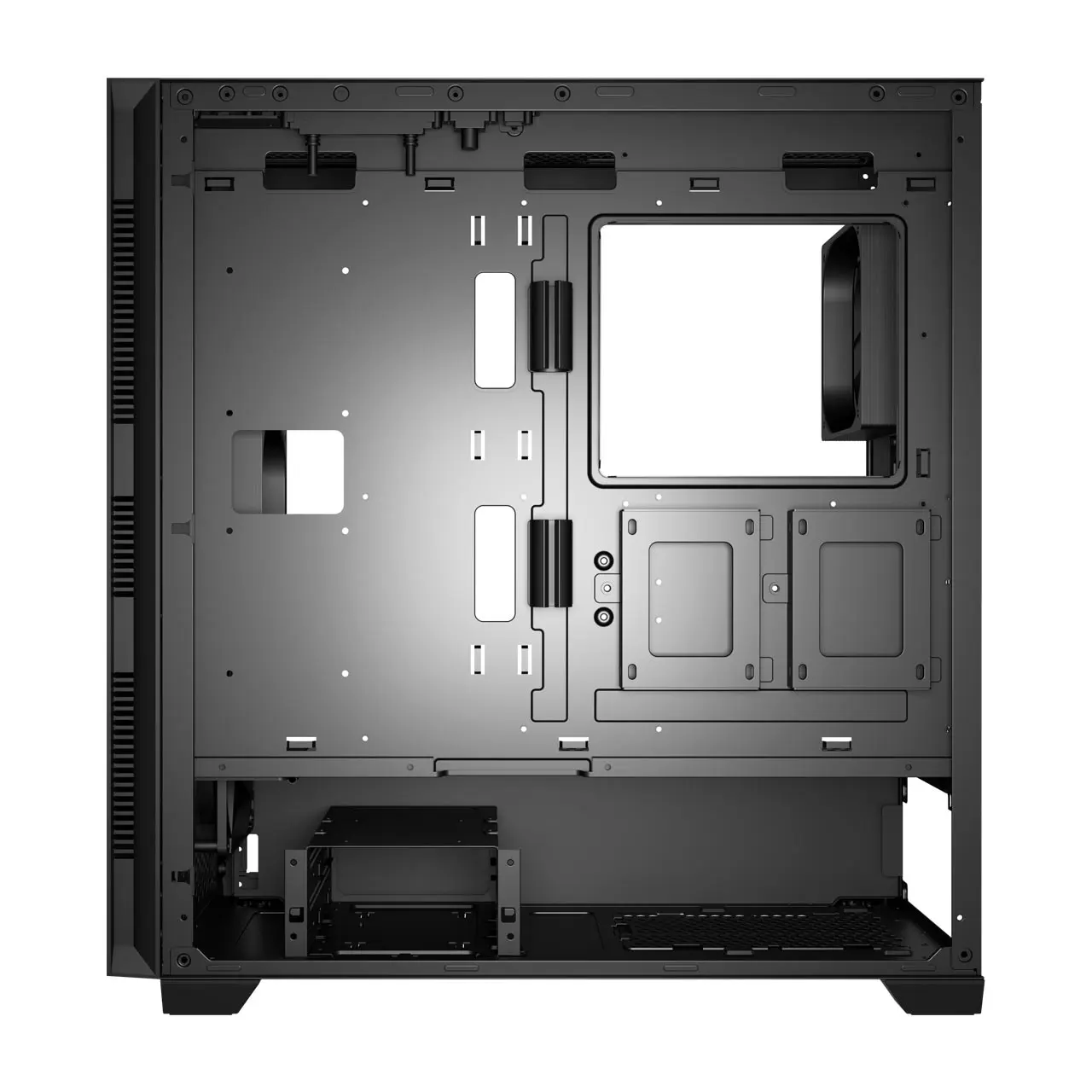

FEATURES Silent Design: High-density sound-dampening material effectively helps minimize system operating noise. Durable Construction: Constructed with strong and reinforced 0.7mm SPCC steel panels for enhanced durability. 4 × 120mm Silent Fans: Comes with three pre-installed front fans with shrouds and one rear silent fan. 360mm Radiator Support: Supports liquid cooling radiators up to 360mm at the front or top for efficient cooling. 375mm GPU Support: Accommodates graphics cards up to 375mm and includes a dedicated GPU holder for added stability. 175mm CPU Cooler Clearance: Provides clearance for large tower-style CPU air coolers up to 175mm in height. Wide Motherboard Compatibility: Supports EEB, E-ATX, ATX, Micro-ATX and Mini-ITX motherboard form factors. Multiple Storage Options: Supports up to 3 × 3.5-inch HDDs and 4+1 × 2.5-inch SSDs for flexible storage configurations. Modern Connectivity: Features 2 × USB 3.0 ports and 1 × USB Type-C port for convenient connectivity. 7 Expansion Slots: Provides seven expansion slots, making it suitable for multi-card and high-performance workstation builds.

Model Name

U530-BS

Type

Silent E-ATX Ultra Tower

Color

Black

Materials

0.7mm SPCC

Weight

8.88KG

Dimension DxWxH (mm) / (inch)

473x230x490mm

Maximum CPU Cooler Height

175mm

Graphics Card Length

375mm with Graphics Card Holder

Expansion Slots

7

MotherBoard Support

EEB, E-ATX, ATX, M-ATX, Mini-ITX

External I/O port

USB3.0 x 2, Type-C

Power Supply Type

230mm ATX

3.5" HDD

3 (Share with SSD)

2.5" SSD

4+1

Fan Including (Pre-installed)

Front: 120mm x 3 with Fan Shroud, Rear: 120mm x 1

Fan & Water Cooler Support

Front: 120/140mm x 3 or 360mm Radiator, Top: 120mm x 3 or 140mm x 2 or 360mm Radiator, Rear: 120/140mm x 1

Max Radiator Support

360mm

EAN/UPC

EAN: 4711498481986 / UPC: 845685016034

Warranty

1 years limited (specs)
