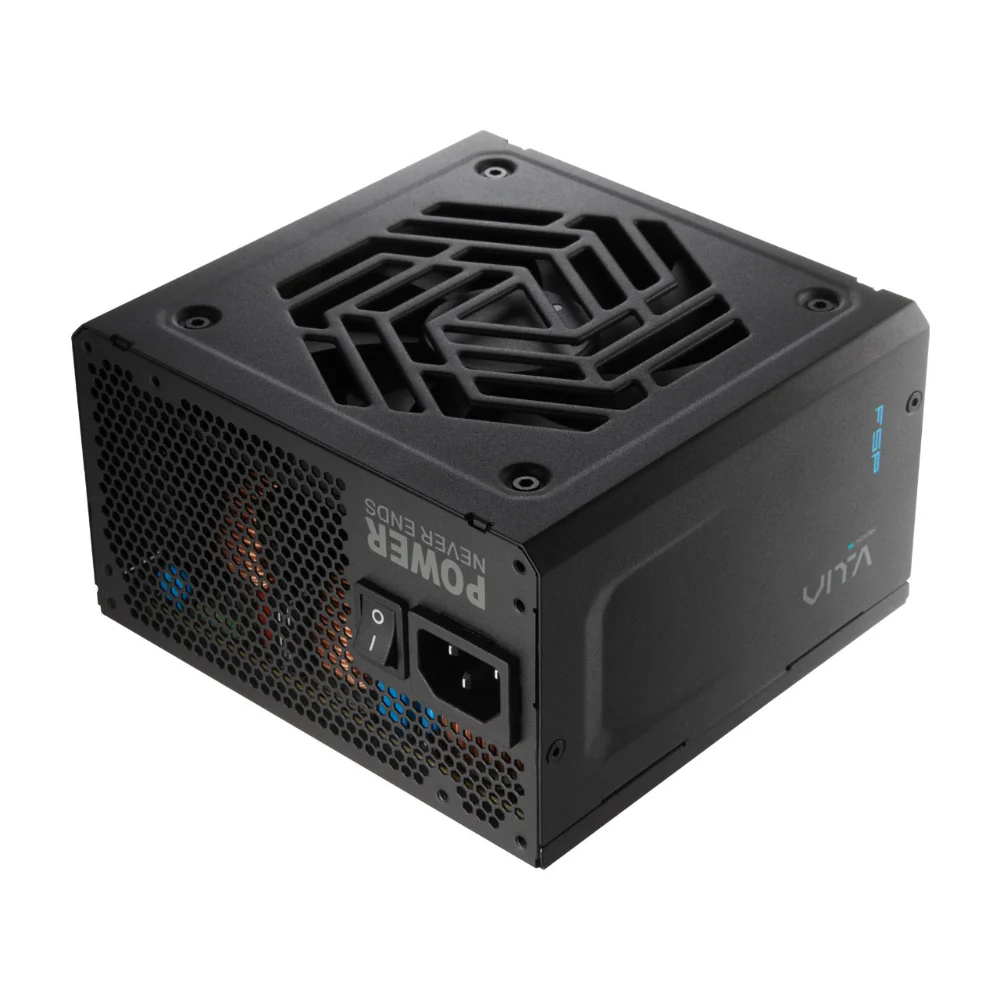

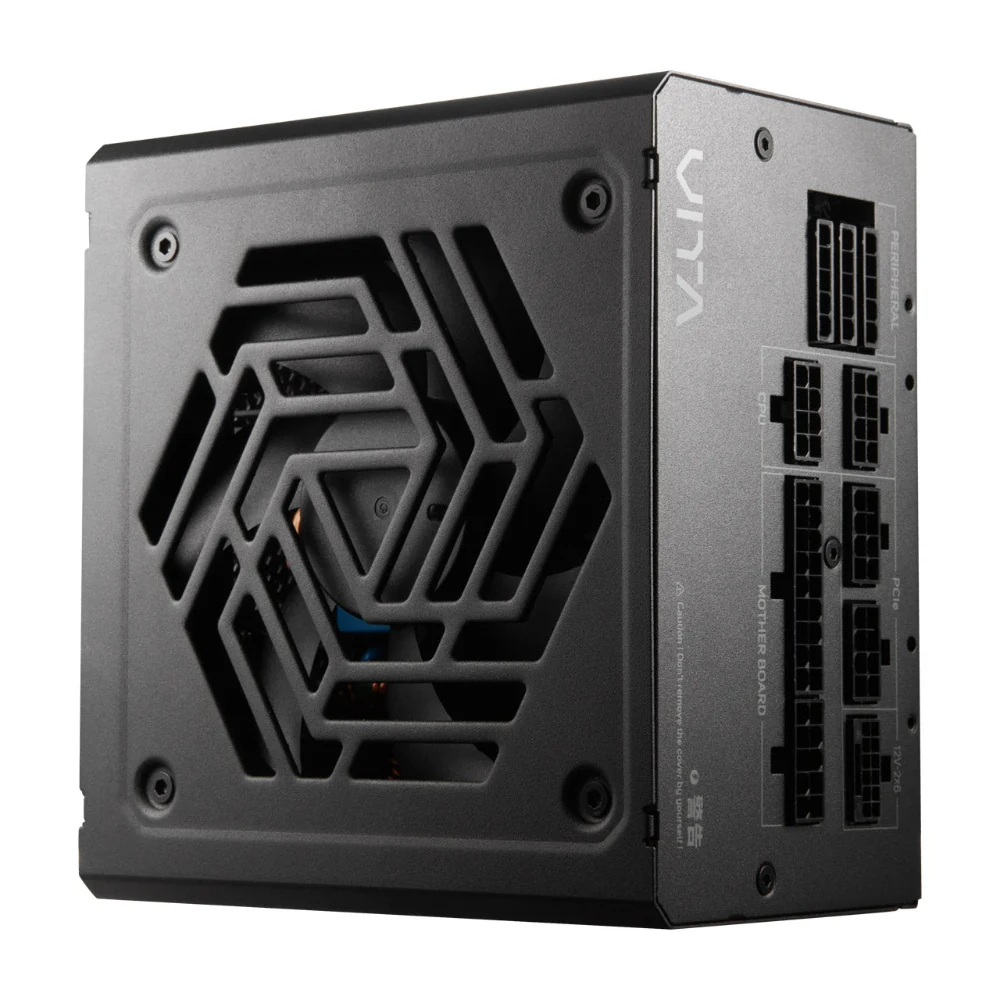

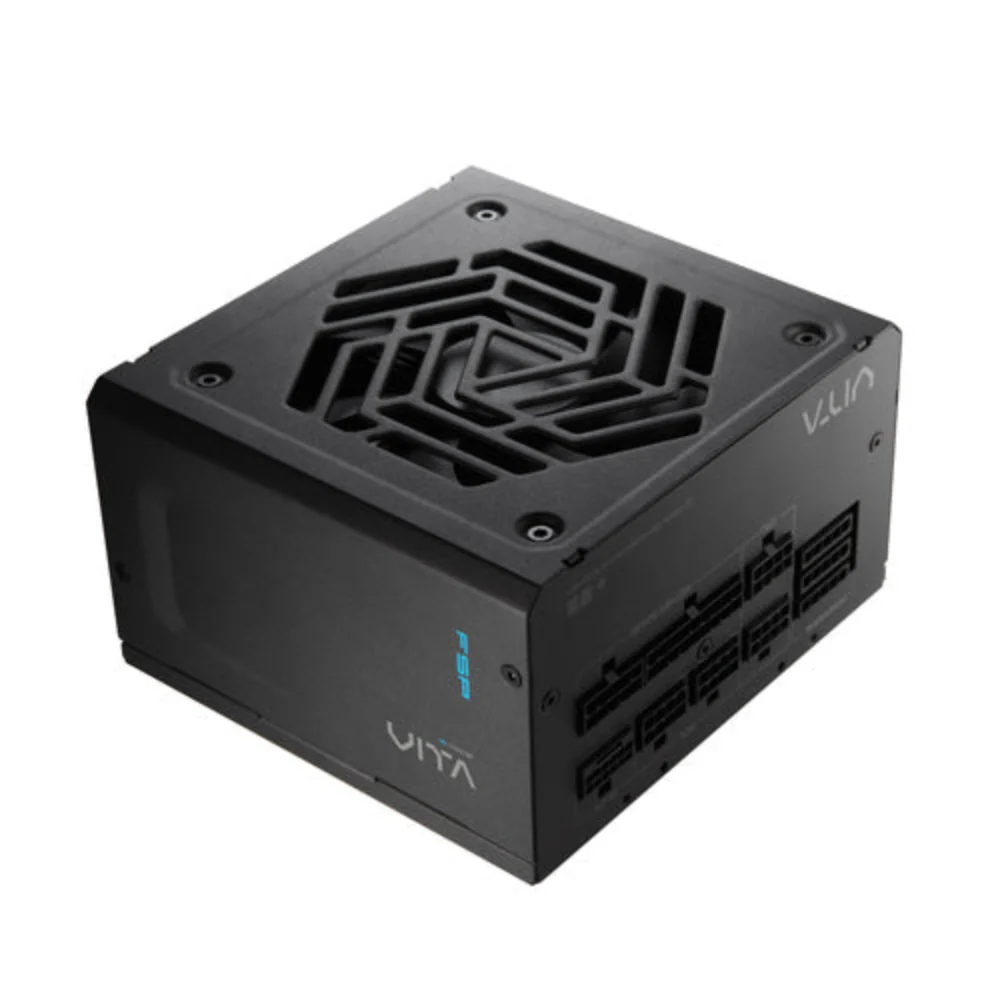

FSP VITA GM 750W Fully Modular 80 Plus Gold

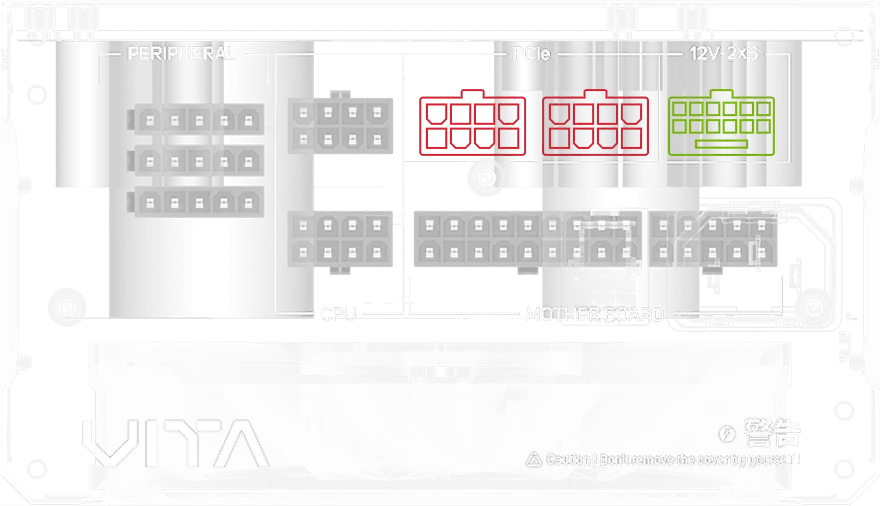

Features of FSP VITA GM 750W 80+ Gold ATX 3.1 Fully Modular Power Supply ( 750W ) Complies with ATX 12V V3.1 & EPS 12V V2.92 Efficiency ≧ 90% at typical load 80 PLUS ® gold certified 105°C Japanese bulk capacitor 120mm hydraulic bearing ( HYB ) fan Fully modular cabling design Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO Complies with Intel ® Power Design Guide ATX 3.1 Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades. High Efficiency in Gold-certified Certified by world-class organizations 80 PLUS® gold certifications and reach platinum efficiency at typical load for lower power loss, less heat, and quieter operation. LLC Resonant-converter Topology with Synchronous Rectifier Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions. +5V & 3.3V DC to DC Circuit Design Increase the efficiency and stabilize the output voltage to ensure system stability. 105°C Japanese Bulk Capacitor Equip your PC with the best-in-class capacitors to offer maximize reliability, performance, and lasting power. 120 mm hydraulic bearing (HYB) fan Quality bearing keeps fan noise to a minimum while providing maximum cooling performance. Powerhouse Single +12V Rail This high-amperage +12V rail delivers high load capabilities, it’s ideal for intensive workloads of high-performance CPUs and graphics cards. The Force Comes with You Individual CPU 4+4 pin cables provide CPU direct output power to ensure stable operation even under the most demanding workloads. The Force Comes with You Dual PCIe 6+2Pin cables and a versatile 12V-2×6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards. Fully Modular Cabling Design To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter. Compact PSU Size：140 x 150 x 86mm 140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance. Fortress-level Protection Our comprehensive circuit shields your valuable components from harm.

Model

VITA-750GM

Rated Output Power

750W

Form Factor

ATX12V V3.1

80 PLUS Certification

Gold

Cybenetics Certification

Gold

Cybenetics Lambda

A+

Input Voltage

100-240V

Input Current

10-5A

Input Frequency

50-60Hz

PFC

Active ≧ 0.9

Efficiency (at typical load)

≥90% at typical load

Fan Type

HYB fan, 120mm

Dimensions (L x W x H)

140×150×86 mm

Operation Temp

40°C

Protection

OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO

Warranty

10 Years
